30A - XT60 Male / Female Terminal to 2.5-4 OT Terminal (M4) Connector Adapter Cable

With the development of electronic products, there are various connectors in electronic devices. Currently, failures caused by bad connectors account for more than 37% of all equipment failures. XT60 connectors play a role in conducting current and connecting signals in electronic equipment. XT60 connectors are easier to carry out professional division of labor, parts replacement, troubleshooting and quick assembly. Because of their stronger and more reliable functions, they are widely used in various devices.

SPECIFICATION

XT60 Male / Female Terminal

• Contact Resistance: 0.45 megohm
• Rated Voltage: DC 500V
• Rated Current: 30A
• Instantaneous Current: 60A
• Operating Temperature: -20 Degree Celsius to +120 Degree Celsius
• Metal Material: Brass Gold Plated
• Plastic Material: PA

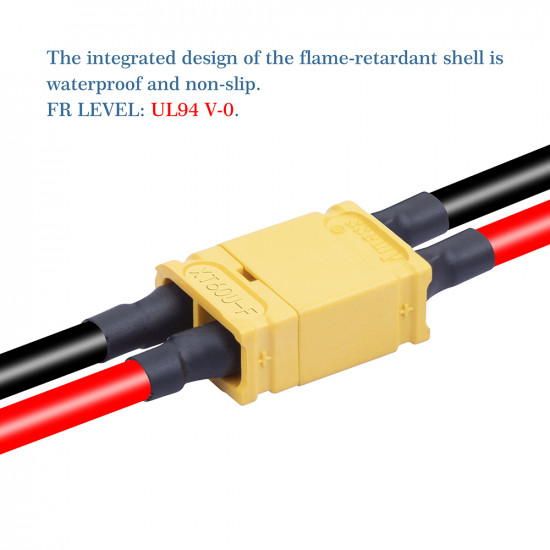

• FR Level: UL94 V-0

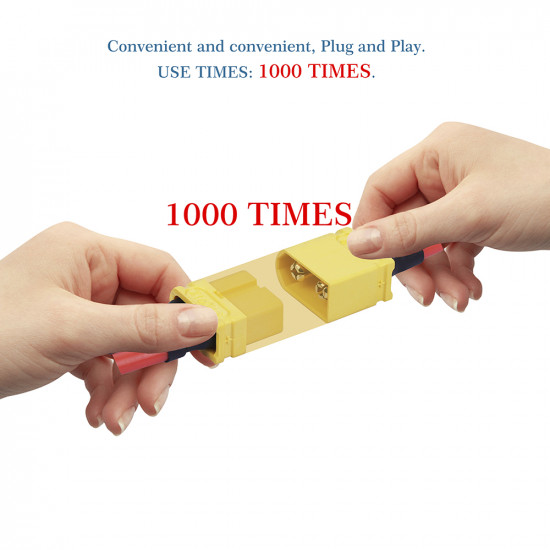

• Recommended use Times: 1000 times

UL3135-14AWG Silicone Wire

• Contact Resistance: 9 omega/Km
• Rated Voltage: DC 600V
• Rated Current: 20A
• Operating Temperature: -60 Degree Celsius to +200 Degree Celsius
• Withstand Voltage: DC 600V

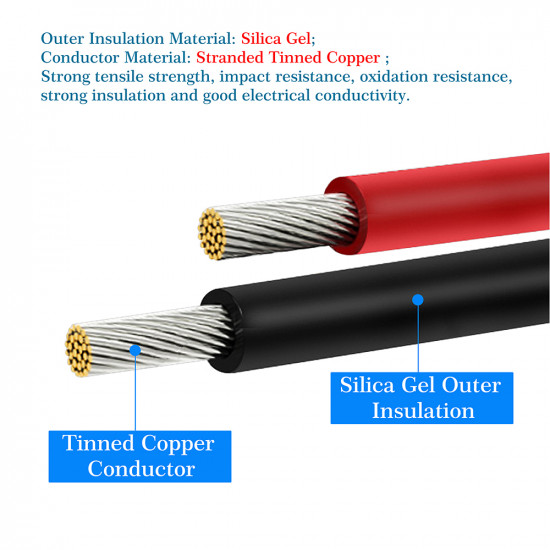

• Conductor Material: Stranded tinned copper conductor
• Core Structure: 41 * 0.254
• Line Skin Material: Silicone
• DIA: 3.5 Plus/Minus 0.05mm
• FR Level: UL94 FT2

Heat Shrinkable Sleeve

• Withstand Voltage: DC 600V
• FR Level: UL94 V-0

2.5-4 OT Terminals

• Material: Nickel plating on copper

DISTRIBUTION LIST

1* XT60 Male / Female Terminal to 2.5-4 OT Terminal Connector Adapter Cable
