Raspberry Pi HQ Camera, 12.3MP IMX477 Sensor, Supports C / CS Lenses

The Raspberry Pi High Quality Camera is the latest camera board from Raspberry Pi Foundation. It adopts the IMX477R sensor, and requires a C- or CS-mount lens to work. It is compatible with Raspberry Pi series boards, offers higher resolution (12.3MP) and higher sensitivity (nearly 50% greater area per pixel for improved low-light performance) than the existing Camera Module V2.

The Raspberry Pi High Quality Camera could be an ideal alternative for the Camera Module V2, suits industrial and consumer applications like security camera, and other specialist optical devices which require higher level of visual fidelity.

SPECIFICATION

• Model: Sony IMX477R;
• 12.3 million pixels: 4056 (H) × 3040 (V);
• CMOS diagonal length: 7.9mm;
• Single pixel size: 1.55µm (H) × 1.55µm (V);
• Output format: RAW12/10/8, COMP8;
• Back focus: adjustable (12.5mm-22.4mm);
• Lens standard: C-mount/CS-mount (matching C/CS connecting ring);
• IR filter: integrated;
• Tripod mount: 1/4″-20;
• Compatible standards: FCC 47 CFR Part 15, Subpart B, Class B Digital Device; Electromagnetic Compatibility Directive (EMC) 2014/30/EU; Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU.

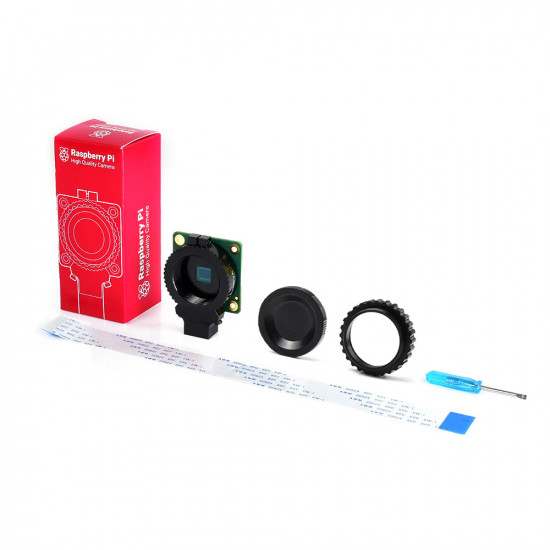

SHIPPING LIST

1 * Raspberry Pi High Quality Camera main unit

1 * C-CS adapter

1 * Dust cap

1 * FFC ribbon

1 * Screwdriver

1 * Packing box
