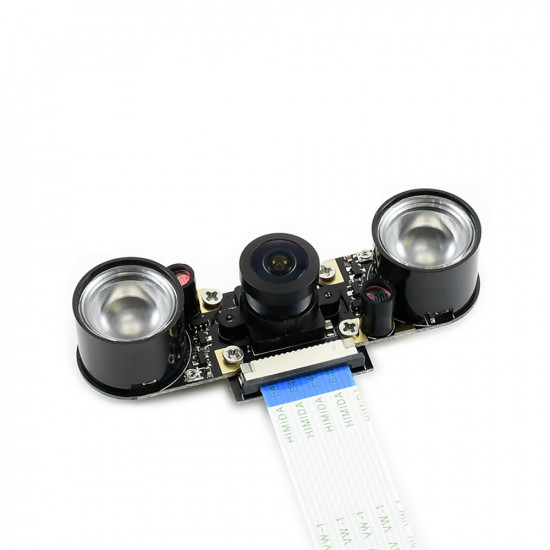

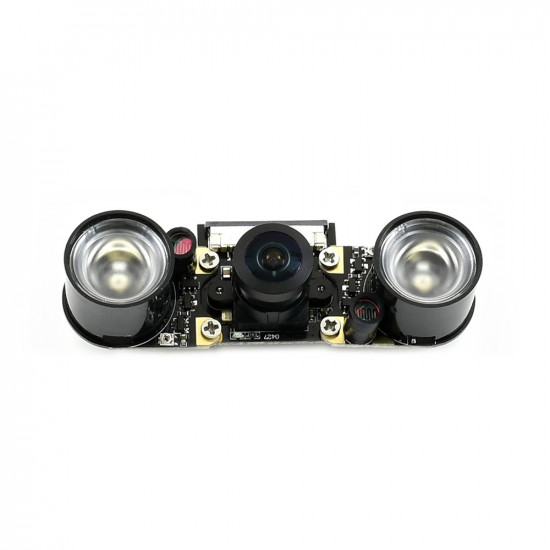

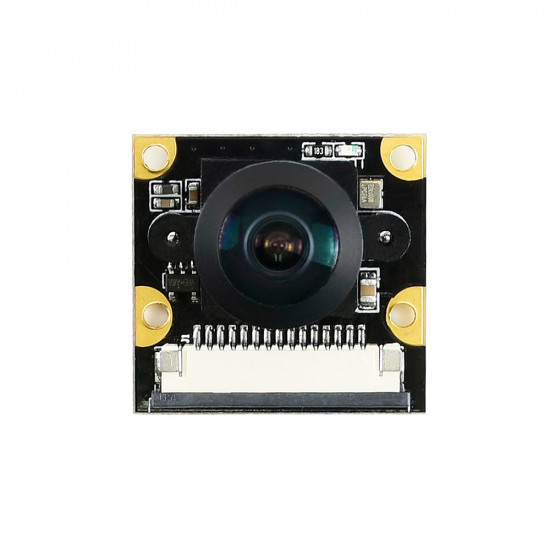

Jetson Nano Camera, Sony IMX219, 8 Megapixels, Infrared Night Vision, 160° FOV

Sony IMX219 Camera, 800 megapixels, Infrared Night Vision and 160° FOV. Compatible with Jetson nano. You can also use it with CM3/CM3+ expansion boards like Raspberry Pi Compute Module IO board, Compute Module IO Board Plus board.

APPLICATIONS

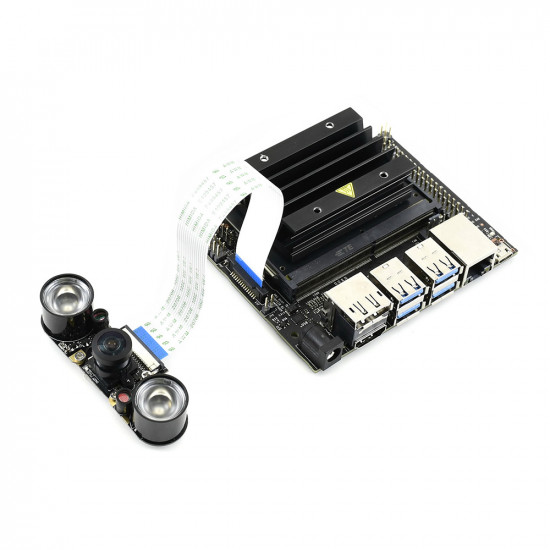

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:

• Face recognition
• Road mark detection
• License plate recognition

SPECIFICATION

Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX

Supports night vision when works with infrared LEDs

8 Megapixels

Sensor: IMX219

Resolution: 3280 × 2464

Lens specifications:

• CMOS size: 1/4inch
• Aperture (F): 2.35
• Focal Length: 3.15mm
• Angle of View (diagonal): 160 degree
• Distortion: <14.3%

4 screw holes

• Used for attachment
• Provides 3.3V power output
• Supports connecting infrared LED and/or fill flash LED

Dimension: 25mm × 24mm

SHIPPING LIST

1 * Sony IMX219 Camera (IR/160° FOV)

2 * Infrared LED Board (B)

1 * 15-pin FFC (Opposite Sides Contact)
