Jetson Nano Camera, Sony IMX219, 8 Megapixels, Infrared Night Vision, 77° FOV
Jetson Nano Camera, Sony IMX219, 8 Megapixels, Infrared Night Vision, 77° FOV
$24.99
Ex Tax: $24.99
- Stock: In Stock
- Brand: CQRobot
- Model: CQR-WX16755
- Weight: 98.00g
- SKU: CQR-WX16755
Sony IMX219 Camera, 800 megapixels, Infrared Night Vision and 77° FOV. Compatible with Jetson nano. You can also use it with CM3/CM3+ expansion boards like Raspberry Pi Compute Module IO board, Compute Module IO Board Plus board.
APPLICATIONS

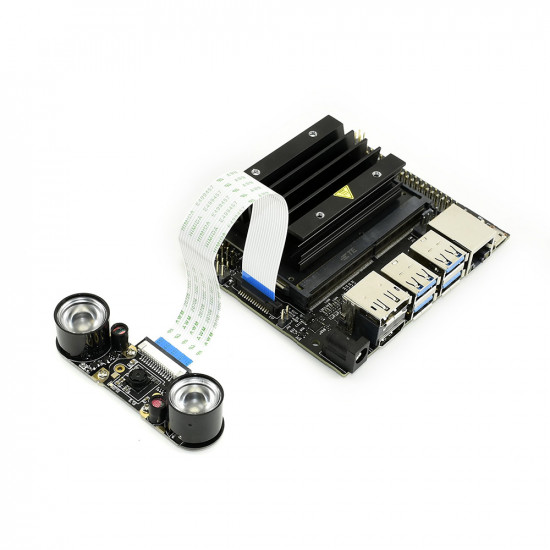

Combined with the Jetson Nano AI computer, this camera suits for AI projects such as:
- Face recognition
- Road mark detection
- License plate recognition
SPECIFICATION
Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
Supports night vision when works with infrared LEDs
8 Megapixels

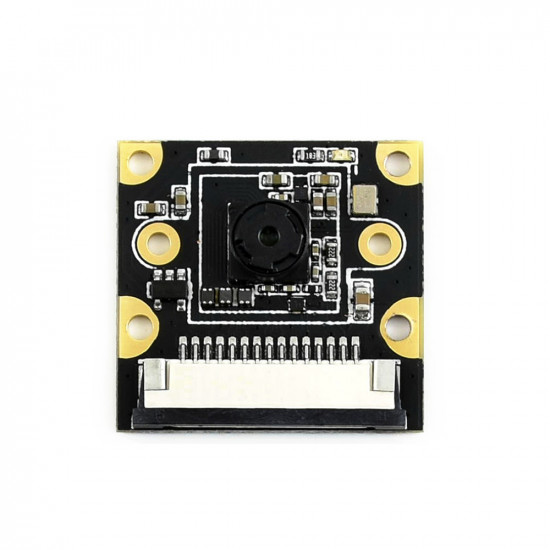

Sensor: IMX219
Resolution: 3280 × 2464
Lens specifications:
- CMOS size: 1/4inch
- Aperture (F): 2.0
- Focal Length: 2.85mm
- Angle of View (diagonal): 79.3 degree
- Distortion: <1%
- Lens dimensions: 6.5mm × 6.5mm

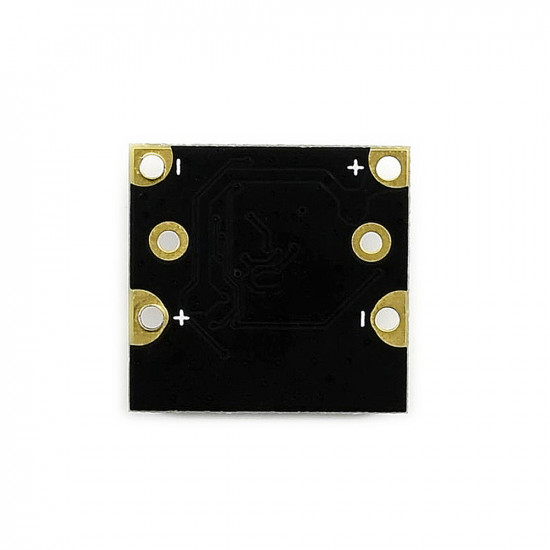

4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
Dimension: 25mm × 24mm
SHIPPING LIST

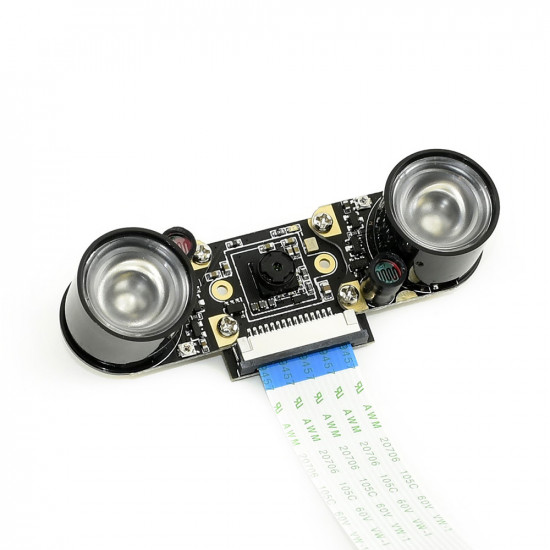

1 * Sony IMX219 Camera (IR/77° FOV)
2 * Infrared LED Board (B)
1 * 15-pin FFC (Opposite Sides Contact)
