$9.99
Ex Tax: $9.99
5 or more $9.50
50 or more $9.18
100 or more $8.99
  • Stock: In Stock
  • Brand: CQRobot
  • Model: CQRMCP23017A
  • Weight: 78.00g
  • SKU: CQRMCP23017A
  • ASIN: B08DFNR2JW

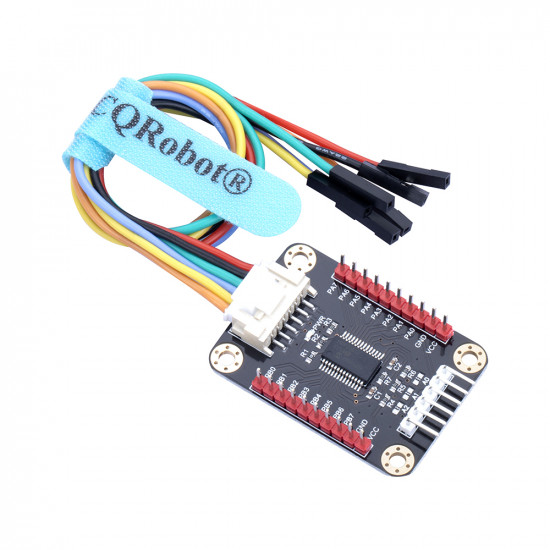

Ocean: MCP23017 IO Expansion Board expands 2 signal pins as 16 I/O pins based on the I2C bus, up to 8 MCP23017 IO Expansion Board can be used at the same time, providing up to 128 I/O pins, it is compatible with both 3.3V and 5V levels.

Wikihttp://www.cqrobot.wiki/index.php/MCP23017_IO_Expansion_Board_SKU:_CQRMCP23017A

SPECIFICATION

Sensor Specifications

  • Operating Voltage: 5V/3.3V
  • Interface: I2C (JST PA SMT 6-Pin interface to 2.54mm pitch pin header interface)
  • Interrupt Pins: INTA, INTB
  • Expansion I/Os: 16
  • Dimension: 45.24mm * 31.79mm
  • Mounting Hole Size: 3.0mm

Ocean Wire Specifications

  • Cable specifications: 22AWG
  • Material: Silicone
  • Withstand Voltage: Less Than 50V
  • Withstand Current: Less Than 1000MA
  • Length: 21cm

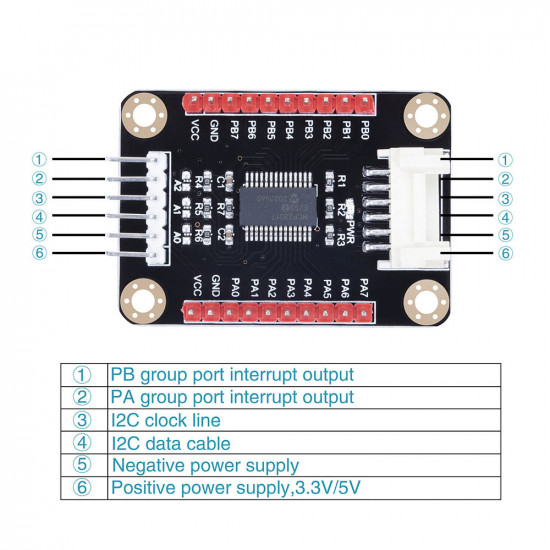

  • Line Sequence: Black-negative power supply, Red-positive power supply, Green-SDA, Blue-SDA, Yellow-INTA, Orange-INTB.

DISTRIBUTION LIST

1 * MCP23017 IO Expansion Board

1 * Ocean-JST-PA SMT 6-Pin 21cm Wire
