$6.99
Ex Tax: $6.99
10 or more $6.39
50 or more $5.50
100 or more $4.99
  • Stock: In Stock
  • Brand: CQRobot
  • Model: AngelDT-9000DEA
  • Weight: 78.00g
  • ASIN: B01LVVI1XI

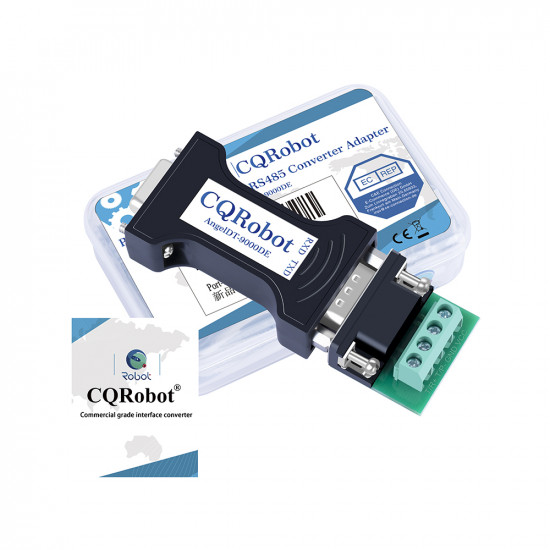

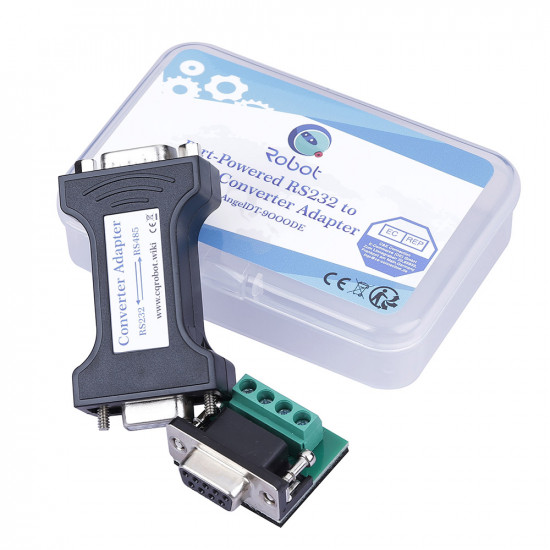

The AngelDT-9000DE converter is compatible with RS-232 and RS-485 standards. It converts the RS-232 communication interface into a two-wire half-duplex RS-485 communication interface. It has a built-in fast transient voltage suppression protector TVS and a unique internal use The "RS-232 charge pump" drives the entire circuit to work. The circuit is equipped with a zero-delay automatic transceiver conversion device. The anti-collision I/O circuit automatically controls the direction of data flow, which ensures that the program written in RS-232 mode can run safely in RS-485 mode without modification. At the same time, both ends of the signal support two-way transmission. Its internal interface still has voltage stabilization protection, electrostatic protection, and strong anti-interference characteristics. All components are produced on an automatic placement assembly line, which enhances the reliability and stability of the product.

Wikihttp://www.cqrobot.wiki/index.php/RS232_to_RS485_Converter_Adapter_SKU:_AngelDT-9000DE

SPECIFICATION

  • Conform to: CE Standard
  • Power: Serial power stealing without external power supply;
  • Operating Current: Less than 10mA;
  • Communication Rate: 300bps to 115.2Kbps;
  • Communication Distance: RS485 port(1200m), RS-232 port(5m);
  • Number of Connectable Nodes: 10 nodes;
  • Protection Level: 600W Surge Voltage Protection and 15KV Static Electricity Protection;
  • Operating Temperature: -20 Degree Celsius to +70 Degree Celsius;
  • Relative Humidity: 5% to 95%;
  • Mea: 64mm * 33mm * 17mm;
  • Weight: 35g (Product Net Weight).

DISTRIBUTION LIST

1 * RS232 to RS485 Converter

1 * Terminal Board

1 * Instructions for use
