Ocean: Relay Module, 5V to 30V Input/Output, DC2.1 Interface for Raspberry Pi, Micro:bit and Arduino.

Relay is an automatic switching element with isolation function, which is widely used in remote control, telemetry, communication, automatic control, mechatronics and power electronic equipment, and is one of the most important control elements. The traditional relay module has complicated wiring and is not friendly to novice makers or electronic enthusiasts. The CQRobot relay module simplifies the wiring of traditional relays. The input terminal is equipped with an adapter, which is compatible with most power supplies and battery boxes. , DC power supply, power bank, etc. While simplifying the wiring method, the functions of the relay NC and NO are retained, and only a simple adjustment of the toggle switch is used to switch between normally open and normally closed modes.

CQRobot's latest simple relay module uses a standard Ocean sensor interface and supports a wide voltage input from 3.3V to 5.5V, making it easy to Compatible with Raspberry Pi, Micro:bit, Arduino and other main control boards. Satisfy your needs in robot control, lighting control, smart home, surveillance and other control applications.

Wiki: http://www.cqrobot.wiki/index.php/Relay_Module_3.3V_to_5.5V

SPECIFICATION

Relay Module Specifications

• VIN Operating Voltage: 5V to 30V
• VIN Operating Current: 0A to 2.5A
• Logic Power Supply: 3.3V to 5.5V
• Logic Signal: 3.3 to 5.5V
• Operating Temperature: -55 Degree Celsius to +150 Degree Celsius
• Switching Characteristics: T(on)= 20us / T(off)= 50us
• Switching Trequency: 1kHz
• Dimension: 43mm * 30mm

Ocean Interface Cable Specifications

• Cable specifications: 22AWG
• Material: Silicone
• Withstand Voltage: Less Than 50V
• Withstand Current: Less Than 1000MA
• Length: 21cm
• Line Sequence: Black-Negative Power Supply, Red-Positive Power Supply, Green-Signal Terminal.

DISTRIBUTION LIST

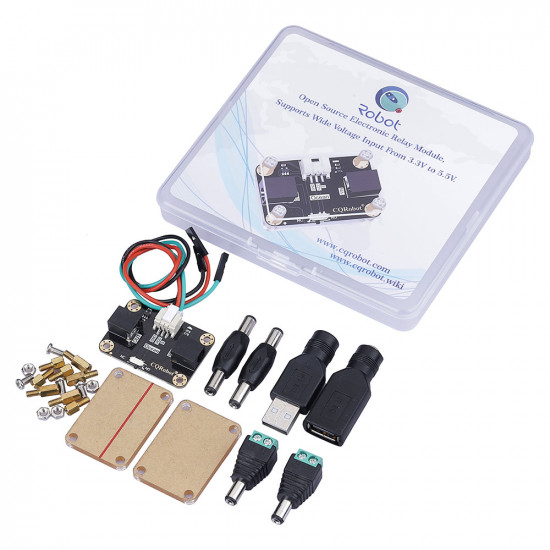

1 * Relay Module

1 * Ocean Interface JST 3-Pin Cable

2 * DC2.1 Power Adapter Male

2 * DC2.1 Male to Male

1 * DC2.1 Female to USB Male

1 * DC2.1 Female to USB Female

1 * Acrylic Shell Mounting Bracket kit
